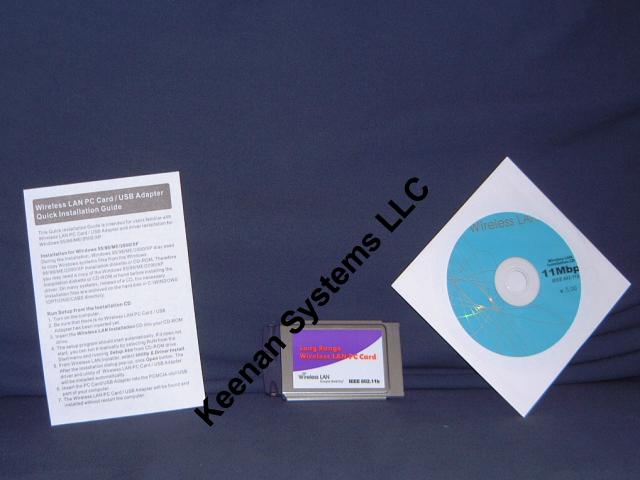

Engenius Senao 200mw PCMCIA Card w/ MMCX Connectors 2511-CD-PLUS-EXT2

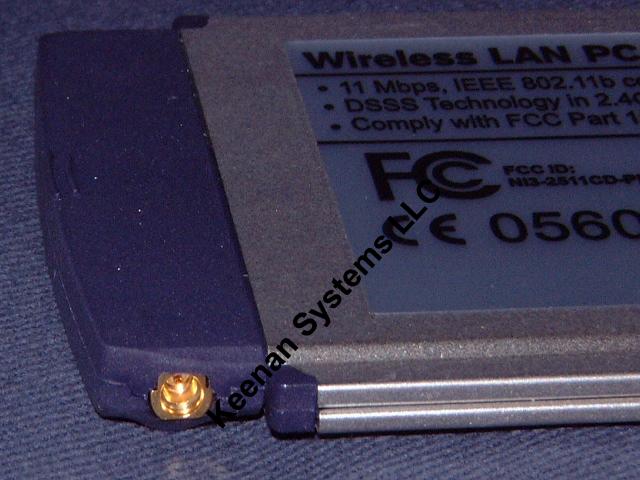

With the card upside down and the pcmcia connector pointing towards you the send receive port is the connector on your right.
Requires external or clip on antenna see ea-2402
Up to 23dBm(200mW) RF Output Power
Long operating range, up to three times range of standard products
11Mbps IEEE 802.11b Compliant
Full Interoperable with IEEE 802.11b
Automatic data rate scaling at 11, 5.5, 2 and 1 Mbps
Optimized throughput, range and connectivity
Improved 64/128-bit WEP Engine Significantly improved throughput
Wide coverage range up to 1200 meters in open space Wireless connectivity for
all your computers
Advanced Power Management Extended battery life
Plug and Play PC Card interface Easy installation
Significantly improved indoor multi-path distortion Higher link quality in
indoor environment
11Mbps data transfer rate High-speed data transmission
Range
11 Mbps: 300m/450m
5.5 Mbps: 400m/600m
2 Mbps: 500m/750m
1 Mbps: 800m/1200m
Rec. Sensitivity (@FER=0.08)
11 Mbps <-89dbm
5.5 Mbps <-91dbm
2 Mbps <-93dbm
1 Mbps <-95dbm
Network Information
Network Architecture: Support ad-hoc, peer-to-peer networks and infrastructure
communications to wired Ethernet networks via Access Point
Drivers: Windows 95/98/ME/2000/NT 4.0/CE/XP
Access Protocol: CSMA/CA
Roaming: IEEE802.11b compliant
Security: 64/128-bit WEP data encryption
Radio
Frequency Band: 2.4 – 2.484 GHz
Radio Type: Direct Sequence Spread Spectrum (DSSS)
Modulation: CCK (11, 5.5Mbps) DQPSK (2Mbps) DBPSK (1Mbps)
Operation Channels: 11 for North America, 14 for Japan, 13 for Europe, 2 for
Spain, 4 for France
RF Output Power: 23dBm(200mW)--FCC
Antenna: Two antenna connectors (MMCX) requires external antenna.
