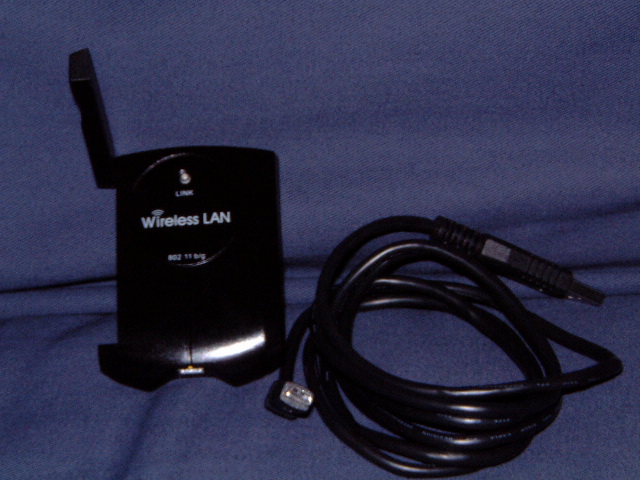

Engenius Senao NUB-362 200mW USB adapter


click for our price

Click for PDF data sheet


High Power(23dbm) 108Mbps Wireless USB 2.0 Adapter

Click here for a review

The NUB-362 is a wireless USB 2.0 adapter that supports the IEEE 802.11b/g (2.4GHz) radio operation. It provides a high-speed wireless connection with data rate up to 108Mbps. To protect your wireless connectivity, the high-speed wireless USB adapter can encrypt all wireless transmissions through 64/128/152-bit WEP data encryption and also supports WPA. Dynamic Frequency Selection (DFS) puts your network on the cleanest channel in your location. With the high-speed wireless USB adapter, you will experience the best wireless connectivity available.

High Speed Data Rate up to 108Mbps (Super G) Capable of handling heavy data payloads such as MPEG video streaming High Output Power up to 23 dBm More power can advance the distance Standard (AES), Temporal Key Integrity Protocol (TKIP) and Wired and Equivalent Privacy (WEP) Powerful data security (802.11i) IEEE802.1x Client Support Enhances authentication and security Support for 802.11e standard Quality of Service support (QoS) for wireless multimedia enhancements Advanced Power Management Low power consumption (up to 98%)in power saving mode Support eXtended Range technology eXtended Range technology offers Wi-Fi products twice the range of existing designs

* Spec. : Data Rates 802.11g: 6, 9, 12, 18, 24, 36, 48, 54, 72, 96 & 108 (Super G) Mbps 802.11b: 1, 2, 5.5, 11Mbps Standards / Compliance IEEE802.11, IEEE802.11g, IEEE802.11b, draft IEEE 802.11e, and i standards, IEEE802.1x Regulation Certifications FCC Part 15/UL, ETSI 300/328/CE Operating Voltage 5 V +/- 0.25V Status LEDs RF link activity Drivers Windows 98SE/ME/2000/XP RF Information Frequency Band U.S., Europe and Japan product covering 2.4 to 2.484 GHz, programmable for different country regulations Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) Modulation Technology 802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSSS (DBPSK, DQPSK, CCK) Operating Channels 11 for North America, 14 for Japan, 13 for Europe, 2 for Spain, 4 for France Receive Sensitivity (Typical) 2.412~2.472GHz (IEEE802.11g) 6Mbps@ -92dBm; 54Mbps@ -76dBm 2.412~2.472GHz (IEEE802.11b) 11Mbps@ -92dBm; 1Mbps@ -96dBm Antenna Dipole antenna Networking Topology Ad-Hoc, Infrastructure Security IEEE802.1x support for LEAP/PEAP WPA ?Wi-Fi Protected Access (AES, 64,128,152-WEP with shared-key authentication) Physical Form Factor USB 2.0 Dimensions 75.2(L) mm x 53.9(W) mm x 14(H) mm Weight 40 g/ 1.5oz Environmental Temperature Range Operating: -0C to 55C Storage: -20Cto 75C

Humidity (non-condensing) 5%~95% Typical
