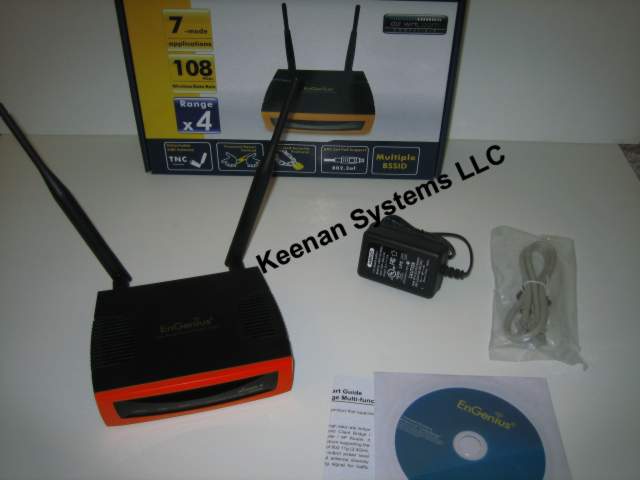

EnGenius ECB3500 600mW access point / bridge


click here for the new 800mW ECB300

click here for pdf data sheet

click here for review

supports locator utility

High 600mw wireless power
Multi-Functional Device
Multiple Wireless Names (APMODE)
Dual high gain detachable antenna design
Intelligent Quality of Service (QOS) Technology
Power over ethernet (802.3AF) capable
Super G 108Mbps support


H A R D W A R E S P E C I F I C A T I O N
S O F T W A R E F E A T U R E S
MCU
Atheros AR2316, 180MHz
Topology
Infrastructure
Memory
32MB SDRAM
Operation Mode
Client Bridge/Access Point/WDS AP/WDS Bridge/
Flash
8MB
Client Router/AP Router/Universal Repeater

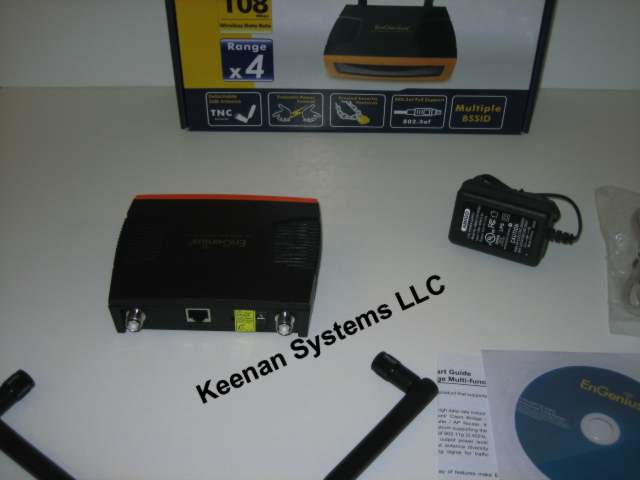

LAN: One 10/100 Fast Ethernet RJ-45
LAN
DHCP Server
Physical Interface
DHCP Client
Reset Button
Power Jack
WAN (Client Router/AP
PPPoE
Router mode)
Power/ Status
LED's Status
LAN (10/100Mbps)
Router
NAT/NAPT
WLAN (Wireless Connection)
VPN
VPN pass-through (PPTP, L2TP, IPSEC)
Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz (depends on different countries)
Power Requirements
Wireless Mode ­11b/11g/Super G
Active Ethernet (Power over Ethernet, IEEE802.3af)- 48 VDC/0.375A
Channel Selection (Setting varies by Country)
Device: 12V/1A
Wireless
Transmission Rate
Regulation Certifications
FCC Part 15, CE
11b/g: 108, 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
Transmit output power control
R F S P E C I F I C A T I O N
Signal Strength
WEP Encryption-64/128/152 bit
Frequency Band
2.400 ­2.484 GHz
WPA Personal (WPA-PSK using TKIP or AES)
Media Access Protocol
Carrier sense multiple access with collision avoidance (CSMA/CA)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator (AP mode)
Modulation Technology
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
802.1x Supplicant-TTLS (CB mode)
Security
Hide SSID in beacons
Operation Channels
11 for North America
Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)(AP mode)
IEEE 802.11g
MAC Filter (AP mode)
6Mbps@ -92dBm · 54Mbps@ -74dBm
Receive Sensitivity (Typical)
L2 isolation (AP mode)
IEEE 802.11b
Wireless STA (Client) connected list
1Mbps@ -97dBm · 11Mbps@ -89dBm
Lock to AP MAC (CB mode)
IEEE 802.11g
QoS
WMM
26dBm@6~24 Mbps
25dBm@36 Mbps
Available transmit power
23dBm@48 Mbps
M A N A G E M E N T
22dBm@54 Mbps
Configuration
Web-based configuration (HTTP)/Telnet
IEEE 802.11b
27dBm@1~11Mbps
Firmware Upgrade
Upgrade firmware via web-browser
Keep latest setting when f/w update
Antenna *2
Detachable omni antenna
TNC type; Peak Gain=5dBi (Reverse)
Administrator Setting
Administrator password change
Reset Setting
Reboot (press 1second) · Reset to Factory Default (press 5 second)
System monitoring
Status, Statistics and Event Log
SNMP
v1, v2c
MIB
MIB I, MIB II
Backup & Restore
Settings through Web
E N V I R O N M E N T & P H Y S I C A L
Temperature Range
Operating: 0°C to 45°C (32°F to 113°F)
Storage: -20°C to 70°C (-4°F to 158°F)
Humidity (non-condensing)
5% ~ 95% typical
Dimensions
L: 4.92" (125mm) x W: 4.25" (108mm) x H: 1.22" (31mm)
Weight
0.77 lb. (350g)
